Service kit 100 hours Hill EC-3000

This Hill EC-3000 100 hours service kit consists of several parts and tools to perform maintenance on the Hill EC-3000 or EC-3000 Evo compressor. This maintenance must be performed after the compressor has been used for at least 100 hours.

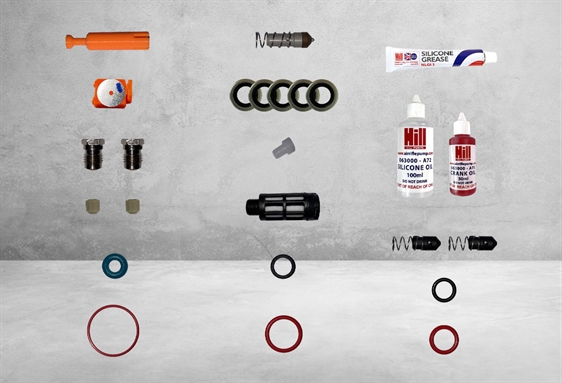

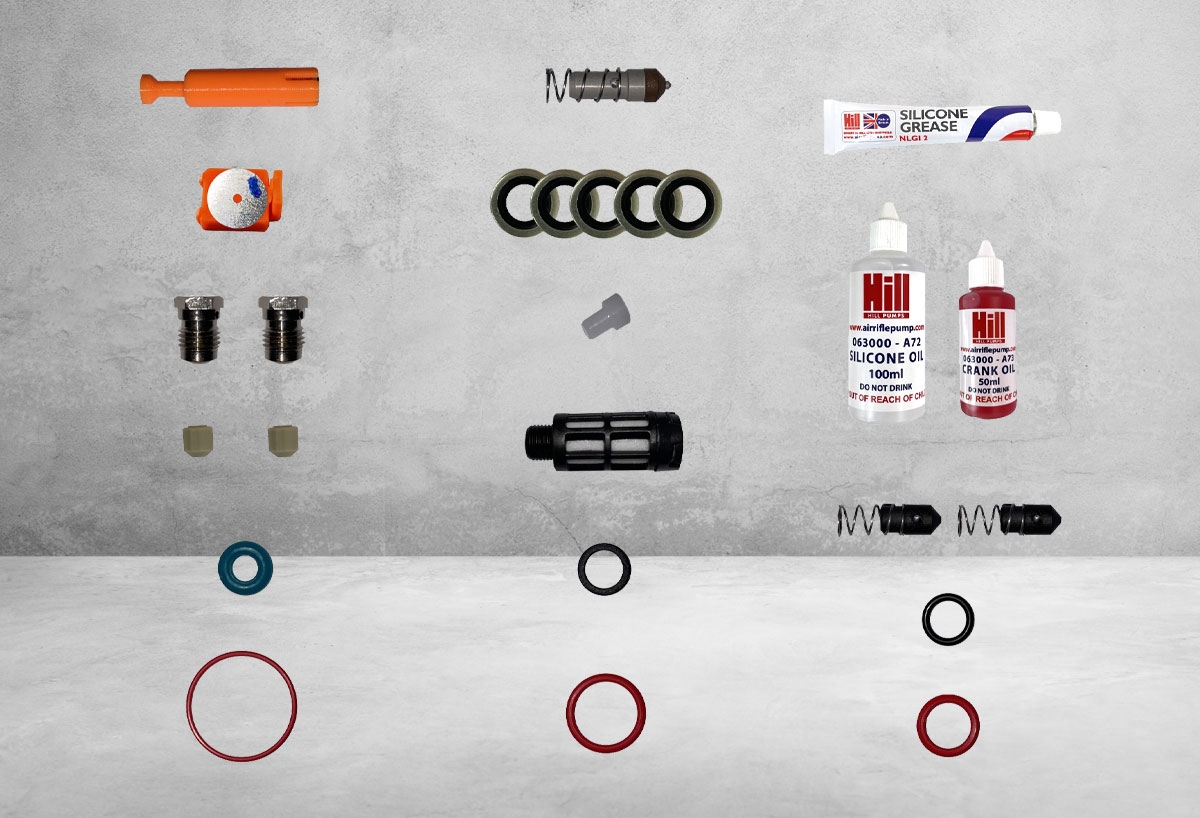

The 100 hours service kit consists of the following:
- 1x 15 g tube of Hill silicone grease
- 1x 50 ml Hill crank oil
- 1x 100 ml Hill silicone oil
- 1x Intake filter
- 2x Burst disk
- 5x Packing ring
- 1x Stage 3 piston seal
- 1x Guide ring
- 1x Shim valve
- 1x Stage 3 ball valve
- 1x Bleed screw seal
- 1x Stage 1 piston seal
- 1x Stage 2 piston seal
- 1 x Piston shaft seal
- 1 x End stage gasket
- 2 x Spring valves
- 2x Check valve
- 1x Valve tool
